Guangzhou Luckydoor Electronic Equipment Co., Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | Luckydoor |
| Model Number : | K-40 |
| Certification : | CE FCC Rohs |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 20K-30Kpcs / month |
| Delivery Time : | 1-3 working days |

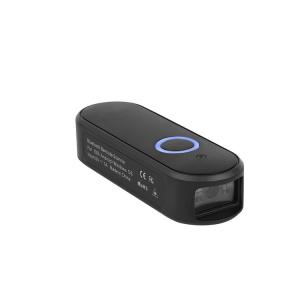

Portable Bluetooth Barcode Scanner , 1D Mini Wireless Handheld CMOS Barcode Scanner Reader With Memory
Product Description :
Bluetooth Barcode scanner K-40 is a small size and powerful new generation mini barcode scanner. It can combine with smart phone as professional data collection terminal. It can scan 1D barcodes into your smart phone via bluetooth.
It is an easy to use, lightweight, and high performing barcode reader, It have dual field optics ,both high density and wide field in the same unit.
Product Features :
• Read 1D barcodes both from mobile screen and paper ,labels
• Compatible with Android ,IOS mobile devices
• Off line function allow users work without limitation
• Memory can store over 30000 barcodes (EAN13)
Product Specification:
| Performance Parameters | |||||||
| Light Sources | 617nm Red visible LED | ||||||
| Supported Symbologies | UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, SSN, Code 32(Italian pharm code), Code 39 extended, GS1-128 and ITF-14, SISAS, GS1 Omnidirectional, GS1 Limited, Aviation25, RSS 14. | ||||||
| Scan Type | CCD Image Sensor | ||||||
| Resolution Ratio | 2500 points | ||||||
| Scan Mode | Manual/Continuous/Automatic Scintillation/Automatic Induction Scanning | ||||||
| Precision | 4mil, 3mil(Optional) | ||||||
| Scan Speed | ≥270 times/s | ||||||
| Contrast | ≥20% | ||||||
| Depth of scan field | 20-330mm(0.33mm, PCS90%) | ||||||
| Error Rate | 1/5million | ||||||
| Scan Angle | Yaw±55°, Rotation 360°, Pitch±55° | ||||||
| Wireless communication mode | Pairing with mobile bluetooth devices: bluetooth BLE4.0 | ||||||
| Wireless transmission distance | Open space: 20 meters or so | ||||||
| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. | ||||||
| Pairing Mode | One to one: One scanner paired with a Bluetooth mobile device | ||||||
| Electrical Parameters | |||||||
| Voltage | DC5V±5% | ||||||
| Maximum Operating Current(MAX) | 170mA | ||||||
| Standby Current | 0mA (Standby is to cut off battery power) | ||||||
| Lithium battery | 800mA | ||||||
| Battery Working Time | 7h | ||||||
| Charging Time | 2.5h | ||||||
| Charging Model | Square USB charging cable; plug straight charging | ||||||
| Physical Parameters | |||||||
| Dimensions | 90mm*30mm*21mm | ||||||
| Material | ABS+PC | ||||||
| Cable Length | 0.8m | ||||||
| Environmental Parameters | |||||||
| Operating Temperature | -20℃~+55℃ | ||||||
| Storage Temperature | -40℃~+70℃ | ||||||
| Relative Humidity | 5%~95% RH(Non-condensing) | ||||||
| Ambient lighting | 0~100000LUX | ||||||
| Shock Resistance | Withstands multiple times 1.2 meters drops to concrete | ||||||
Product Pictures:
Product Advantage:
• 3 in 1 working mode
• Battery support around 6 hours continuous operating
• Light weight and easy to operate
• Excellent reading poor printed, damaged, scratched 1D barcodes
FAQ:
1, What about the range it can work ?
Open yard range around 30m-50m , inside door around 10m-20m
2,How long can this mini bluetooth barcode scanner work ?
It can support around 6 hours continuous working after full charge
3, Does this portable bluetooth barcode reader connect to IOS devices like iphone ?
Yes , it compatible with Android and IOS mobile devices and tablets
4,How long the warranty of this handheld mini barcode scanner ?
We offer 2 years warranty on this wireless mini scanner ,extended warranty is available
|
|
